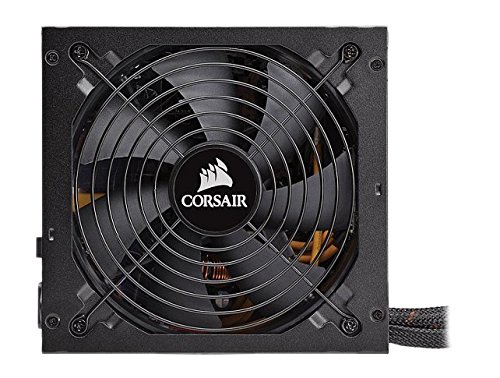

Corsair CX750M V2, 80+ Bronze Certified 750W Semi-Modular Active PFC Power Supply

Technical Information

Product Features

• Brand CORSAIR, Series CX750M V2 (2017 Edition), Model CP-9020154-NA
• Type ATX12V v2.4 / EPS12V 2.92, Maximum Power 750W, Fans 1 x 135mm thermally controlled fan, PFC Active, Main Connector 24Pin, +12V Rails, Single, PCI-Express Connector 4 x 6+2-Pin, SATA Power Connector 8,
• Haswell Support Yes, Modular Semi-Modular, Energy-Efficient 80 PLUS BRONZE Certified, Over Voltage Protection Yes, Input Voltage 100 - 240 V,
• Input Frequency Range 47 - 63 Hz, Input Current 12A - 6A, Output +3.3V@25A, +5V@25A, +12V@62A, [email protected], +5VSB@3A,
• Approvals FCC, ICES, CE, C TUV-US, RCM, TUV, CB, CCC, BSMI, CU TR, RoHS, WEEE, RoHS (China), KC, Dimensions 3.40
